Jade Commercial Quality Home Ranges From Jade Range Co.
Fomerly Dynasty Ranges By Jade Range Co.
See our Web site devoted to Jade Products www.jadestoves.com
Contact Us For March Madness Specials

Jade 30" range RJGR3070A now in stock.

Model DGRSC30 New Convection bake or broil oven can be operated in standard conventional or convection mode .

Overall Dimensions W 30 "  D 28 1/4" H 36 "
With curb base & 6" backguard.

Colored Ranges - No Longer Available

  • Optional:
  • 21" Stainless steel high shelf
  • Stainless steel island back

Four Gas Burners (3) 1000-15,000 BTU, Simmer burner (1) 500-10,000 BTU (Rt. Rear)

Specifications 30" Series
Top Burner Rating 1,000-15,000 BTU/HR
Simmer Burner 500-10,000 BTU/HR
Oven Burner 27,500 BTU/HR
Oven Infrared Burner 17,000 BTU/HR
Oven Size 25" x 16 1/4" x 20 3/8"
Cubic Volume 4.79CF
Usable Volume 4.05CF
Exclusive Features

  • Oversized Oven Cavity with 4.79 cubic feet. Useable volume of 4.05 cubic feet
  • Dedicated simmer burner with 500BTU/HR setting
  • Dual oven lights located in front for maximum visibility without glare
  • Lifetime stainless steel door gaskets
  • Commercial infrared broiler burner
  • Wraparound, heavy-duty oven racks
  • 304 stainless steel oven interior
  • Large viewing glass window
  • State-of-the-art, Heavy-duty GEOGRATES
  • Heavy-duty welded construction
Standard Features
  • Commercial styling and appearance
  • Heavy Gauge 304 stainless front
  • Designed and AGA certified for residential installation
  • Removable stainless steel drip trays
  • Stainless steel curb base
  • Stainless steel stub back
  • Electronic ignition
Electrical Requirements - 120V / 60HZ / 4 AMPS. Manifold Pipe Size - 1/2" NPT

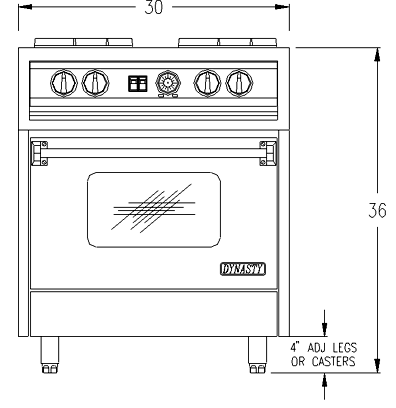

Front view specs

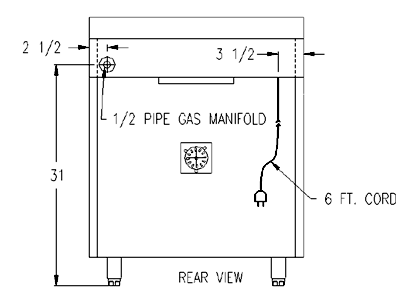

Rear view specs

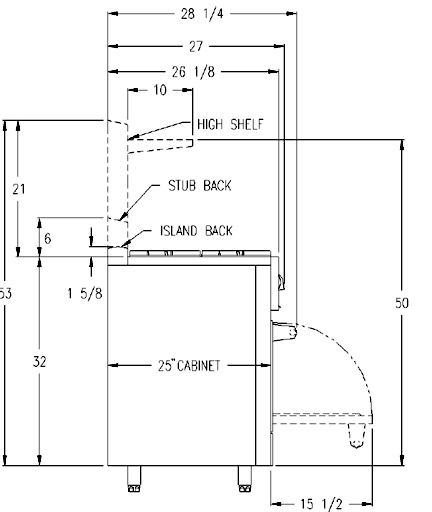

Side view specs
Other Sizes Available
With 4-8 burners, griddles, char broilers, and wok cookers, Dvorson's and Dynasty have a range or cook top for most every need.
30"
36"
48"
