Southbend Restaurant Ranges and Ovens
Southbend Ranges - Since 1898
S-Series Ranges   36" with Standard Oven   36" with Convection Oven   Southbend Replacement Parts   View Shopping Cart

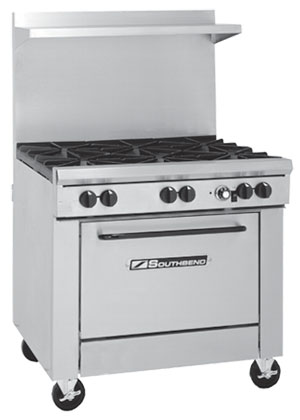

Southbend S36D Range
S36D
Six Burner Southbend Stove with Standard Oven
Shown with Optional Casters

Free Shipping to commercial destinations


"S" Series 6-Burner Restaurant Range with Standard Oven, 36" Special Offer!
Model #: S36D

Price: $2,409.00 with Free Shipping*

S36D (natural gas or propane model with Standard Oven)


Please Contact Us For Assistance 1-877-386-7766

*Lift Gate Delivery fee may apply if required ($150)

Specifications Sheet
User Manual

Restaurants have been relying on Southbend stoves to enable their establishments for more than a century. The legendary manufacturer of cooking equipment continues to provide refined and reliable stoves with the workhorse S-Series Restaurant Ranges. Natural gas or propane model available. 36", (6) 28,000 BTU open burners, (1) standard oven, snap action thermostat, removable cast iron grate tops & crumb drawer, hinged lower valve panel, includes (2) racks, stainless steel front, sides, shelf, 4" front rail & 6" adjustable legs, 115v/60/1-ph, 5.9 amps, cord and plug, 203,000 BTU, CSA, NSF

The S-Series restaurant range offers a quality, versatile range for commercial foodservice applications. 24", 36", 48", and 60" widths and a number of top configurations are available. Configurations include combinations of open burners, griddles and hot tops.

Features

  • 28,000 BTU NAT (24,000 BTU LP) cast-iron, non clog burners
  • Stainless steel front, sides and removable shelf
  • Individual, removable cast iron grate tops
  • Smooth, polished 1/2" steel griddle plate with raised sides available thermostatic or manual (for units with G or T in model name)
  • 35,000 BTU Space Saver Standard Oven
  • Large, 26" x 26-1/2" x 14" oven cavity for convection ovens (and 19-1/2" x 26-1/2" x 14" for space saver ovens)
  • Removable crumb drawers under burners
  • Metal knobs with red stripe
  • Hinged, lower valve panel
  • Quadrant spring door with heat resistant, ergonomic chrome handle
  • 6" stainless steel legs
  • Factory installed pressure regulator
Options & Accessories
  • Heavy-duty casters
  • 10" flue riser
  • 3/4" quick disconnect with flexible hose (3ft, 4ft or 5ft)
  • Restraining device
  • Extra oven racks
  • Cutouts or cutting boards (Open top units only)
  • Hot top plates (each 12" section replaces 2 open top burners)
  • Various salamander & cheese melter mounts
  • Electronic ignition standing pilot-less option also available. Please Call 1-877-386-7766
Warranty
  • 1 year parts & labor warranty
  • Lifetime warranty on burners against clogging
  • Optional extended warranty available

Additional Configurations Available - Please Contact Us for Assistance 1-877-386-7766

Configuration

Model

Description

BASE
S36D
Featured Special

6 Burners with Standard Oven

Price: $2,409.00

1-877-386-7766
Standard Oven



S36A



6 Burners with Convection Oven

Price: $7,189.00

1-877-386-7766

Convection Oven

  S36C 6 Burners with cabinet base Cabinet Base
(no oven)

S36D/A/C-1G

S36D/A/C-2G/T

4 Burners, 12" griddle on left only (manual griddle only)

2 Burners, 24" griddle on left or right, manual or thermostatic

Standard Oven or

Convection Oven or

Cabinet

S36D-3G/T

S36A-3G/T

S36C-3G/T

36" Griddle (Manual or thermostatic)

Standard Oven

Convection Oven

Cabinet



Southbend S36A Range
S36A
Six Burner Southbend Stove with Convection Oven
Shown with Optional Casters

Free Shipping to commercial destinationsFree Shipping with Lift Gate Delivery to Commercial Destinations in the contiguous USA



"S" Series 6-Burner Restaurant Range with Convection Oven, 36" Special Offer!
Model #: S36A


Price: $7,189.00 with Free Shipping

S36A (natural gas or propane model with Convection Oven)


Please Contact Us For Assistance 1-877-386-7766



Specifications Sheet
User Manual

Restaurants have been relying on Southbend stoves to enable their establishments for more than a century. The legendary manufacturer of cooking equipment continues to provide refined and reliable stoves with the workhorse S-Series Restaurant Ranges. Natural gas or propane model available. 36", (6) 28,000 BTU open burners, (1) convection oven, snap action thermostat, removable cast iron grate tops & crumb drawer, hinged lower valve panel, includes (2) racks, stainless steel front, sides, shelf, 4" front rail & 6" adjustable legs, 115v/60/1-ph, 5.9 amps, cord and plug, 203,000 BTU, CSA, NSF

The S-Series restaurant range offers a quality, versatile range for commercial foodservice applications. 24", 36", 48", and 60" widths and a number of top configurations are available. Configurations include combinations of open burners, griddles and hot tops.

Features

  • 28,000 BTU NAT (24,000 BTU LP) cast-iron, non clog burners
  • Stainless steel front, sides and removable shelf
  • Individual, removable cast iron grate tops
  • Smooth, polished 1/2" steel griddle plate with raised sides available thermostatic or manual (for units with G or T in model name)
  • 35,000 BTU Convection Oven
  • Large, 26" x 26-1/2" x 14" oven cavity for convection ovens (and 19-1/2" x 26-1/2" x 14" for space saver ovens)
  • Removable crumb drawers under burners
  • Metal knobs with red stripe
  • Hinged, lower valve panel
  • Quadrant spring door with heat resistant, ergonomic chrome handle
  • 6" stainless steel legs
  • Factory installed pressure regulator
Options & Accessories
  • Heavy-duty casters
  • 10" flue riser
  • 3/4" quick disconnect with flexible hose (3ft, 4ft or 5ft)
  • Restraining device
  • Extra oven racks
  • Cutouts or cutting boards (Open top units only)
  • Hot top plates (each 12" section replaces 2 open top burners)
  • Various salamander & cheese melter mounts
  • Electronic ignition standing pilot-less option also available. Please Call 1-877-386-7766
Warranty
  • 1 year parts & labor warranty
  • Lifetime warranty on burners against clogging
  • Optional extended warranty available

Additional Configurations Available - Please Contact Us for Assistance 1-877-386-7766

Configuration

Model

Description

BASE
S36D

6 Burners with Standard Oven

Price: $2,409.00

1-877-386-7766
Standard Oven



S36A
Featured Special



6 Burners with Convection Oven

Price: $7,189.00

1-877-386-7766

Convection Oven

  S36C 6 Burners with cabinet base Cabinet Base
(no oven)

S36D/A/C-1G

S36D/A/C-2G/T

4 Burners, 12" griddle on left only (manual griddle only)

2 Burners, 24" griddle on left or right, manual or thermostatic

Standard Oven or

Convection Oven or

Cabinet

S36D-3G/T

S36A-3G/T

S36C-3G/T

36" Griddle (Manual or thermostatic)

Standard Oven

Convection Oven

Cabinet
