Jade Gas Cooktops (Retired Model Series)

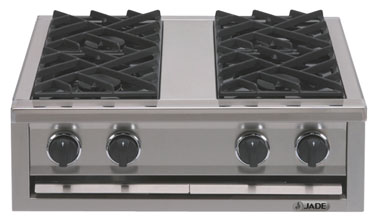

Model Shown: 30" w/ 4 Open Burners
Sizes: 30", 36", 48", & 59" Open Burner,
And 30", 36", 48" Sealed Burner
Professional Style - Jade Cooktops are designed and engendered
for home use by the domestic division of Jade Range, Inc.
Contact Us For Current Specials 1-877-386-7766
Dvorson's Special $
Four Gas Burners One With Simmer
Overall Dimensions
W30", D25 1/2", H9 1/2"
Electrical Requirements - 120V / 60 HZ 1 ph /4 AMPS Manifold Pipe Size
- 1/2" NPT
Specifications 30" Series
Top Burner Rating 1,000-15,000BTU/HR
Simmer Burner 500-10,000BTU/HR
Electrical Requirements -120V / 60HZ 1 pH / 4 AMPS
Manifold Pipe Size - 1/2" NPT
|
Exclusive Features
-
Dedicated simmer burner with 500 &BTU/HR setting
-
Stay cool metal knobs Heavy-duty, commercial welded
construction
Standard Features
-
Commercial styling and appearance
-
Dedicated simmer burner (located at rear right)
-
Designed and AGA certified for residential installation
-
Removable stainless steel drip trays
-
Stainless steel Island trim
-
Stainless steel Front
-
Electronic ignition
-
15,000BTU/HR open-top burners
Options
|
6 Open Burners Dvorson's Special $
4
Burner, Wok Dvorson's Special $
4 Burner, 12" Griddle Dvorson's Special $
Char Broiler Dvorson's Special $
Four Gas Burners One With Simmer & a 16,000BTU/HR Griddle, Char Broiler
or Wok burner.
Standard Features
- Commercial styling and appearance
- Dedicated simmer burner (located at rear right)
- Designed and AGA certified for residential installation
- Removable stainless steel drip trays
- Stainless steel Island trim
- Stainless steel Front
- Electronic ignition
- 15,000 BTU/HR open-top burners
|
Specifications 36" Series
Top Burner Rating 1,000-15,000 BTU/HR
Simmer Burner 500-10,000 BTU/HR
Griddle 16,000 BTU/HR
Wok Burner 1,000 - 20,000 BTU/HR
Char Broiler 24,000 BTU/HR
Exclusive Features
- Dedicated simmer burner with 500 BTU/HR setting
- Stay cool metal knobs
- Heavy-duty, commercial welded construction
Options
- 10" Backguard $
- Butcher block cutting board $
-
- Chrome grate supports
Electrical Requirements -120V / 60HZ 1 pH / 4 AMPS
Manifold Pipe Size - 1/2" NPT
|
48"
Choose from: 8 Burner, Four Burners One With Simmer & a 16,000 BTU/HR
Griddle, Char Broiler or Wok burner. |
48"
DCT-48-8 8 Burners Dvorson's Special $
4 Burner, Griddle, Char Broiler Dvorson's
Special $
Burner, Griddle Dvorson's Special $
4 Burner, Griddle, Wok Dvorson's
Special $
6 Burner, Char Broiler Dvorson's Special $
10" Backguard $ |
59" |
59" 10 Burner Dvorson's Special $
6 Burner, Griddle, Char Broiler Dvorson's Special $
8 Burner, 12" Work Space Dvorson's Special $
6 Burner, 24" Griddle, Dvorson's Special $
6 Burner, Griddle, Wok Dvorson's Special $
4 Burner, Wok, Griddle, Char Broiler Dvorson's Special $
6 Burner, Wok, Char Broiler Dvorson's Special $
8 Burner, Wok Dvorson's Special $
10" Backguard $ |
|
